EYH

Two-dimensional Movement Mixer

Overview

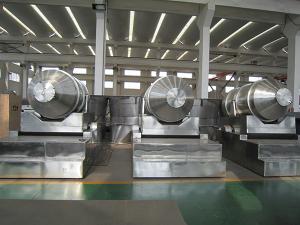

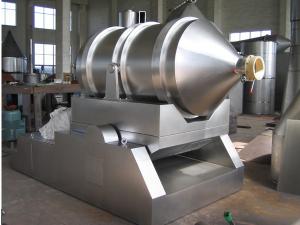

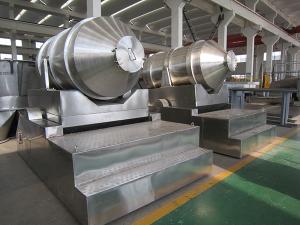

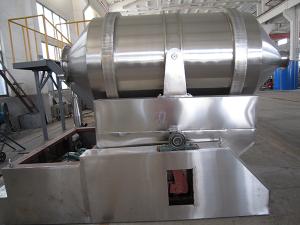

The EYH two-dimensional movement mixer is mainly comprised of rotating drum, oscillating axle and rack. Rotating drum is installed on the oscillating axle, supported by 4 rollers and axially positioned by 2 thrust rollers. Two of the 4 supporting rollers are driven by dynamic system to make the drum rotate. The oscillating axle of our two-dimensional movement mixer is driven by cranked oscillating bar which is secured to the rack of mixing machine. In addition, bearing units function as the support of the oscillating axle.

Features
1. The drum of our two-dimensional movement mixer is in tow motions. It rotates, and on the other hand, it oscillates with oscillating axle. Under such motions, the materials inside the drum are fully mixed within a short time.
2. This two dimensional mixer is applicable for all powdery and granular materials.

Technical Parameters
Model Drum capacity (L) Charging capacity (L) Max. charging capacity (kg/batch) Oscillating/rotating times (r/min.) Motor power (KW) Overall dimension (mm)X×Y×Z×Z1 Weight (kg) Drum weight (kg)
EYH-600 600 360 150 6.5/12.1 1.1/1.5 1200×2200×2050×1900 1150 140
EYH-800 800 480 200 6.18/11.6 1.5/1.5 1400×2700×2230×1930 1600 200
EYH-1000A 1000 600 250 5.28/10.87 1.5/1.5 1450×2850×2300×2000 1700 240
EYH-1500A 1500 900 375 4.13/8.45 2.2/3 1720×3170×2450×2100 2000 320
EYH-2000A 2000 1200 500 4.1/7.6 3/4 1820×3600×2650×2300 2600 430
EYH-3000A 3000 1800 750 3.68/6.83 4/5.5 2070×3700×3150×2800 3500 620
EYH-4000A 4000 2400 1000 3.46/6.8 5.5/7.5 2200×3900×3250×2900 4100 700
EYH-6000A 6000 3600 1500 3.31/6.74 7.5/11 2500×4500×3350×3000 6100 1100
EYH-8000A 8000 4800 2000 3.2/6.4 11/11 2700×4800×3650×3200 7900 1450
EYH-10000A 10000 6000 2500 3.15/6.2 11/15 2900×5050×3750×3300 9500 1650
EYH-12000A 12000 7200 3000 3.1/5.9 15/18.5 3150×5300×4000×3500 10000 1800
EYH-15000A 15000 9000 3750 2.9/5.3 18.5/22 3350×5600×4350×3850 11000 2000
EYH-20000A 20000 12000 5000 2.8/4.5 22/30 3600×6100×4850×4450 12000 2500
